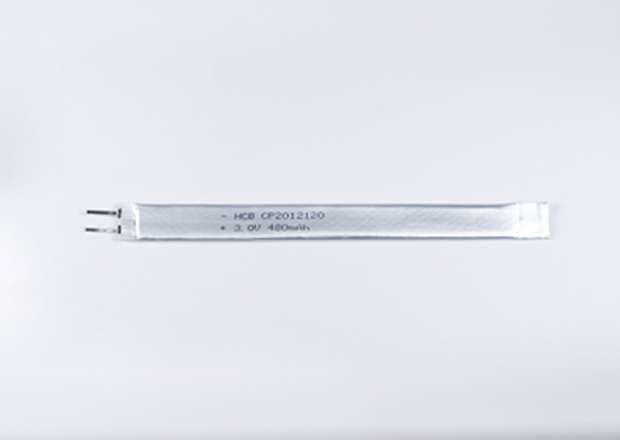

CP2012120 Lithium Pouch Cell

Slim 12mm Width IoT Sensors Prismatic Cells Lithium, No Passivation 450Wh/kg Primary Lithium Soft Batteries 3V 480mAh Li-MnO2 Pouch Cell CP2012120 Flat Battery For Smoke Alarm, door and window sensor, LoRaWAN Digital Solutions.

Details of CP2012120 Li-MnO2 Pouch Cell

Product Details of CP2012120 Li-MnO2 Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationUN/CE/UL/RoHS
Model NumberCP2012120

Payment & Shipping Terms Details of CP2012120 Li-MnO2 Pouch Cell

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time15 workdays
Payment TermsT/T, L/C
Supply Abilitytwo million units per month


Advantage of CP2012120 Li-MnO2 Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃) suitable for the lithium pouch battery

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)


Specification of CP2012120 Li-MnO2 Pouch Cell

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity480mAh
(At +25°C, the battery is discharged at a continuous current of 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current50mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current80mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth12.0±1.0mm
Height125.0±2.0mm
Thickness1.9±0.1mm
Typical weight5.0g
Li metal content0.2g

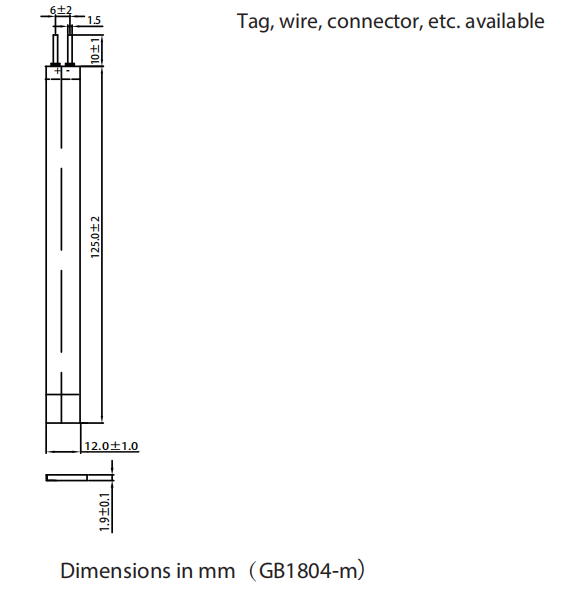

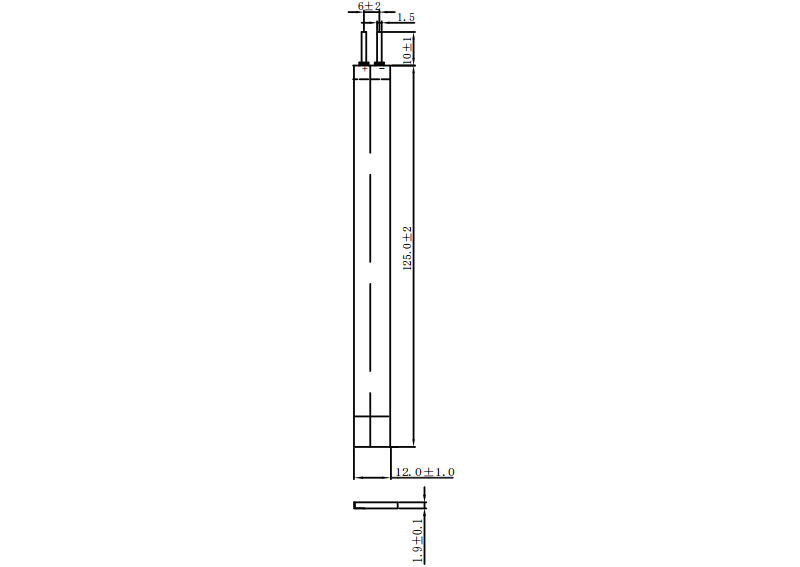

Drawing of CP2012120 Li-MnO2 Pouch Cell
