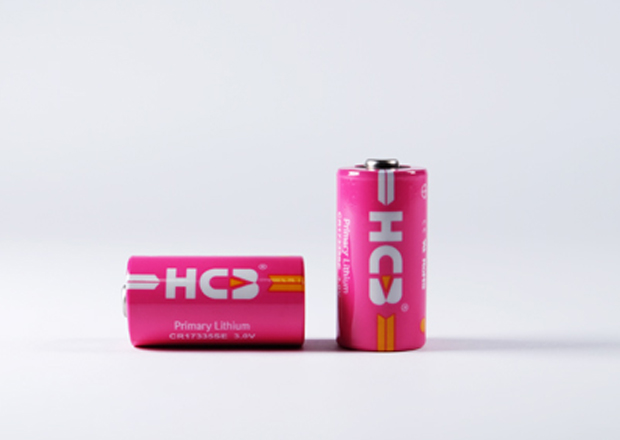

CR17335SE Li-MnO2 Cylindrical Battery

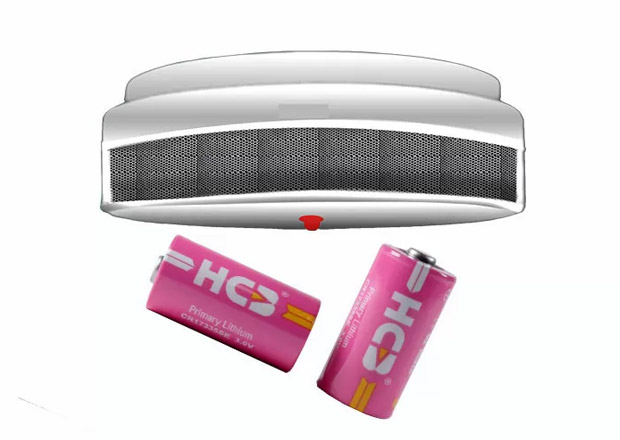

CR123ASE Primary Lithium Manganese Dioxide Batteries Bobbin Type Small Lithium Battery Non-Rechargeable Lithium Batteries 800mAh For Non-rechargeable Gas Meter NB-IoT Meter.

Details of CR123ASE Li-MnO2 Cylindrical Battery


Product Details of CR123ASE Li-MnO2 Cylindrical Battery

Place of OriginChina
Brand NameHCB
CertificationUN/CE/RoHS/UL
Model NumberCR17335SE/CR123ASE


Payment & Shipping Terms Details of CR123ASE Li-MnO2 Cylindrical Battery

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/A, L/C, Western Union, MoneyGram
Supply AbilityTwo million unit per month


Advantage of CR123ASE Li-MnO2 Cylindrical Battery


  • High voltage response, stable during most of the lifetime of the application

  • Energy density for the lithium manganese dioxide battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+85℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

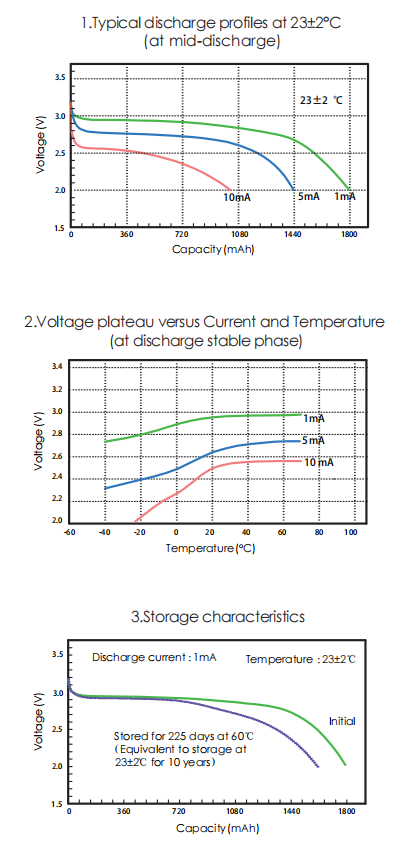

Specification of CR123ASE Li-MnO2 Cylindrical Battery


Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity1800mAh
(At +25°C,battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage.)
Maximum continuous current10mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current100mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsDiameter16.6±0.2mm
Typical weight22.0g
Li metal content0.56g


Use Warning of CR123ASE Li-MnO2 Cylindrical Battery


  • This battery is a non-rechargeable battery.

  • DO NOT CHARGE THE BATTERY! When this battery is charged, gas is generated inside and raises internal pressure, resulting in fire, heat generation, leakage, or bursting.

  • Do not use if the battery casing is damaged.

  • DO NOT DISPOSE OF IN FIRE, DISASSEMBLE OR HEAT IN ANY WAY. It will damage the insulation materials and the safety vent resulting in fire, heat generation, leakage, or bursting.

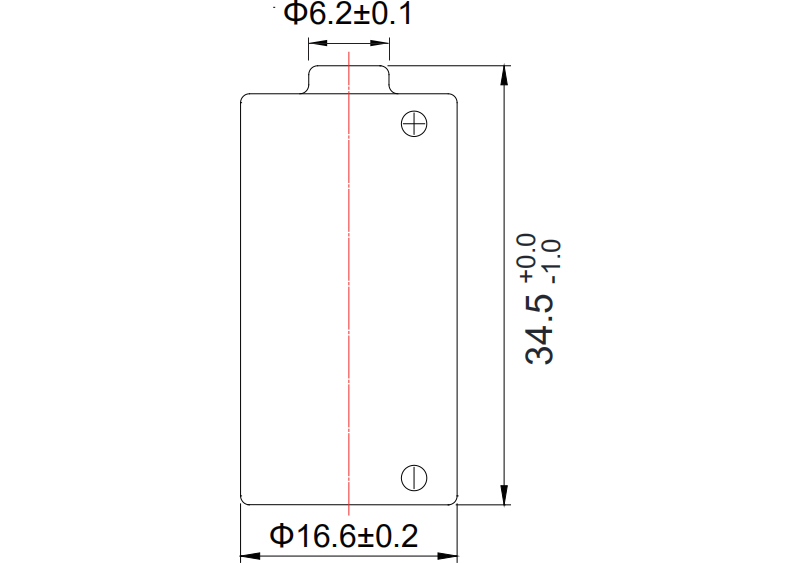

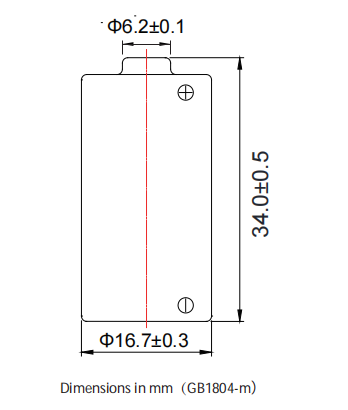

Drawing of CR123ASE Li-MnO2 Cylindrical Battery


CR123ASE Li-MnO2 Cylindrical Battery/Lithium Manganese Dioxide Battery
