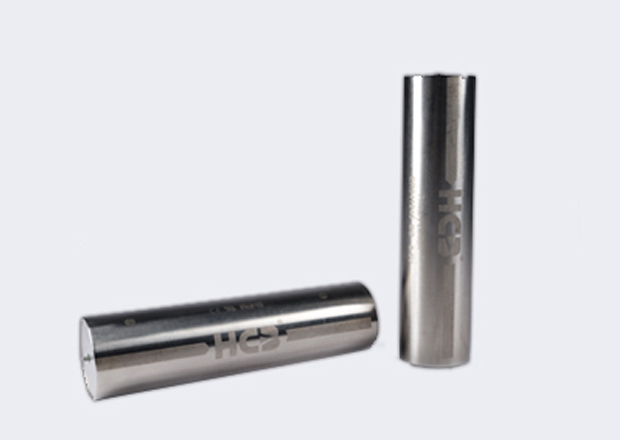

ER341245 Li-SOCl2 Cylindrical Battery

High Voltage 3.6v Bobbin type Li-SOCl2 Battery 36000mAh capacity ER341245 DD size For Use With Smart card instrument, water meter, electricity meter, gas meter, heat meter, Automatic Meter Reading system.

Details of ER341245 Li-SOCl2 Cylindrical Battery


Product Details

Place of OriginChina
Brand NameHCB
CertificationCE/ULUN//RoHS
Model NumberER341245/DD Model


Payment & Shipping Terms

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time35 workdays
Payment TermsT/T, L/C
Supply AbilityTwo million units per month


Advantage of ER341245 Li-SOCl2 Cylindrical Battery


  • High and Stable Voltage

  • Energy Density up to 590Wh/kg

  • Long Shelf Life (less than 1% per year after 1  year of storage at +25℃)

  • Wide Operating Temperature (-55℃~+85℃)



Specification of ER341245 Li-SOCl2 Cylindrical Battery


Electrical characteristicsOpen circuit voltage (at 25°C)≥3.65V
Nominal capacity36000mAh
(At +25°C, the battery is discharged at a continuous current of 4mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage. )
Maximum continuous current400mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )
Maximum pulse discharge current650mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-55°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsDiameter (max)34.2mm
Height (max)124.5mm
Typical weight200.0g
Li metal content9.5g


General Safety Instructions of ER341245 Li-SOCl2 Cylindrical Battery


  • Do not reverse battery, follow strictly the signs + and – shown on batteries and appliances. If batteries are put in the wrong way they are bound to become hot very quickly. This can lead to gas or toxic material leakage and/or to a violent rupture.

  • Do not incinerate or mutilate, may burst or release toxic material.

  • Do not deform batteries. Batteries are not to be crushed, drilled into, or damaged in any other way. This can lead to toxic material or gas leakage and/or violent rupture.

  • Do not throw the battery into the water. This can cause an explosion.

  • Do not charge primary batteries. This can cause gas leakage and will lead to violent rupture and/or fire.

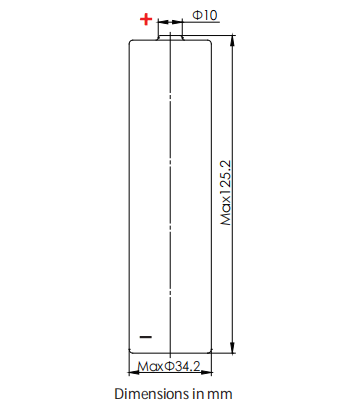

Drawing of ER341245 Li-SOCl2 Cylindrical Battery

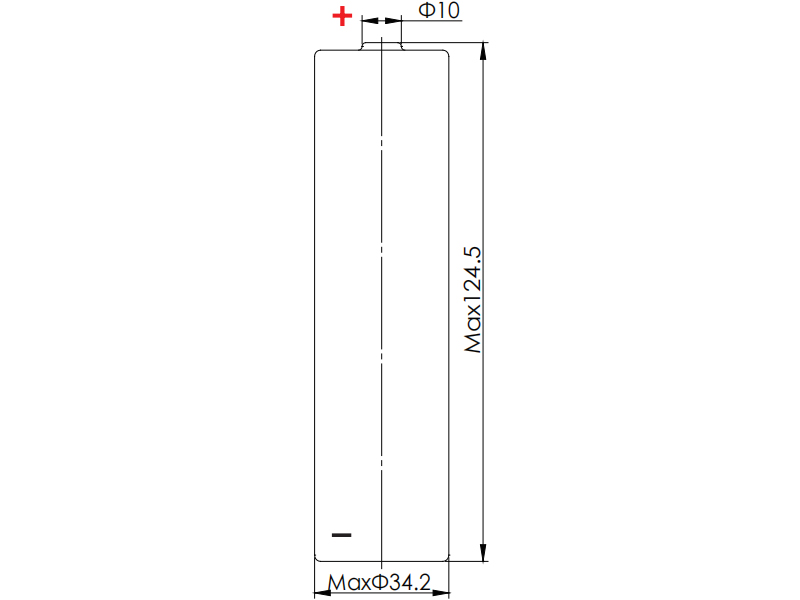

ER341245 Li-SOCl2 Cylindrical Battery/Lithium Thionyl Chloride Cell
