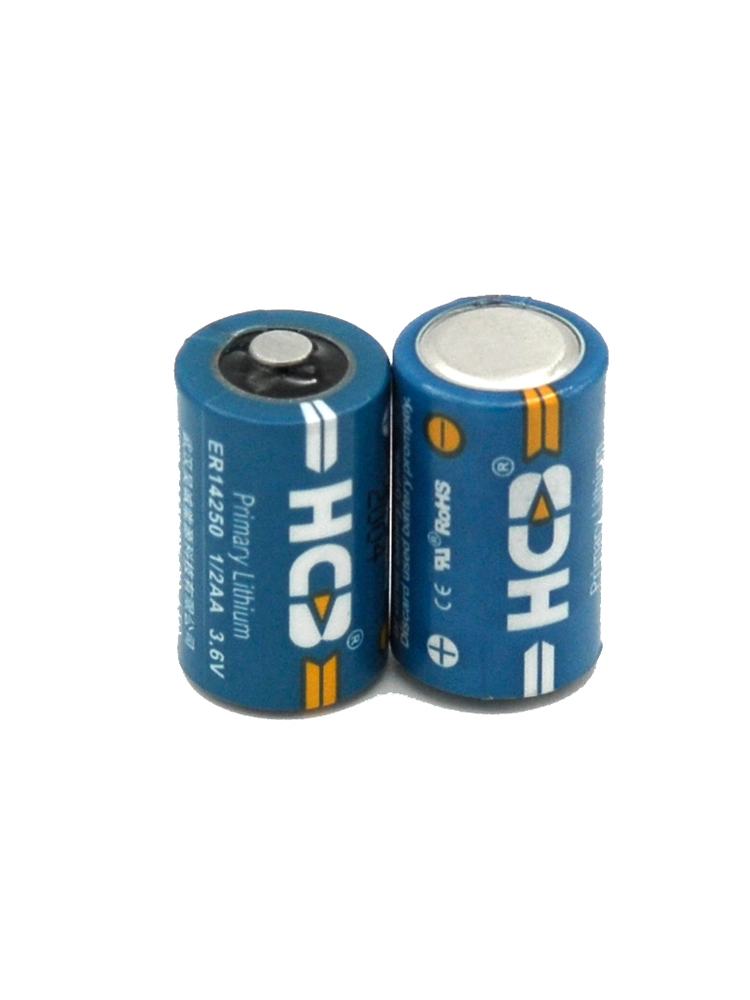

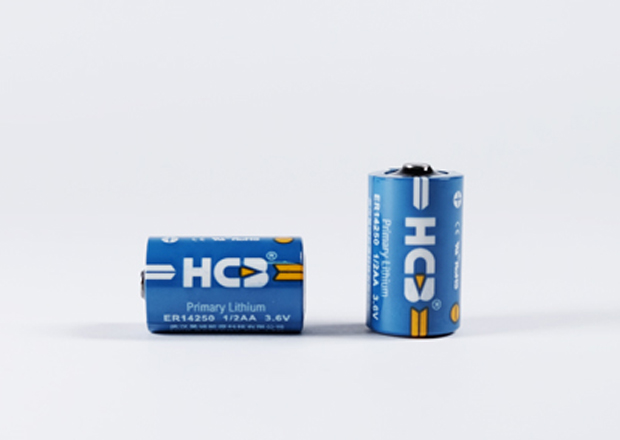

Primary Lithium Battery ER14250

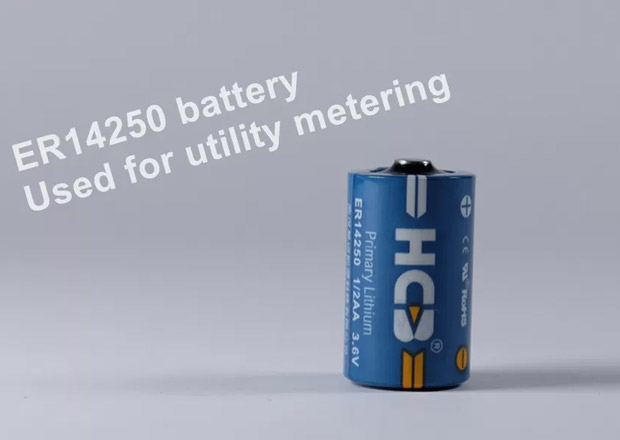

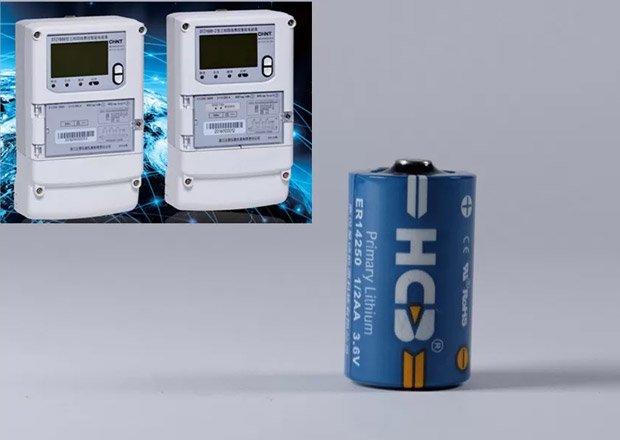

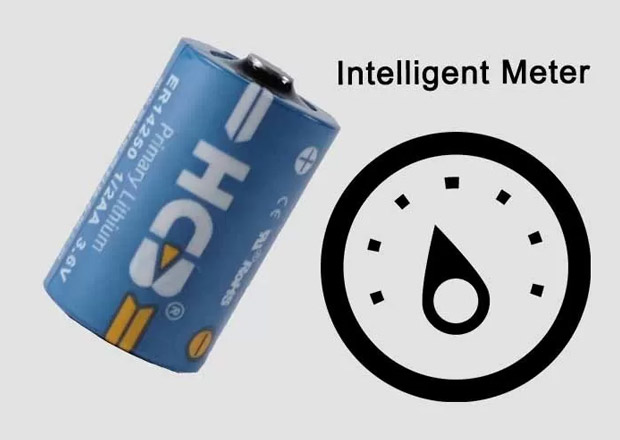

Bobbin Type 1200mAh 3.6V Lithium-thionyl chloride [Li-SOCl2] 1/2AA-size ER14250 Lithium Battery for water meter, electricity meter, gas meter, heat meter, Automatic Meter Reading system
| Place of Origin | PRC |
|---|---|
| Brand Name | HCB PRIMARY LITHIUM BATTERY |
| Certification | UN/CE/UL |
| Model Number | ER14250 |
High and Stable Voltage
Energy Density up to 590Wh/kg
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-60℃~+85℃)
| Electrical characteristics | Open circuit voltage (at 25°C) | ≥3.65V |
| Nominal capacity | 1200mAh | |
| (At +25°C, battery discharged at continuous current 0.65mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | ||
| Maximum continuous current | 40mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. ) | ||
| Maximum pulse discharge current | 80mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -60°C~+85°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||

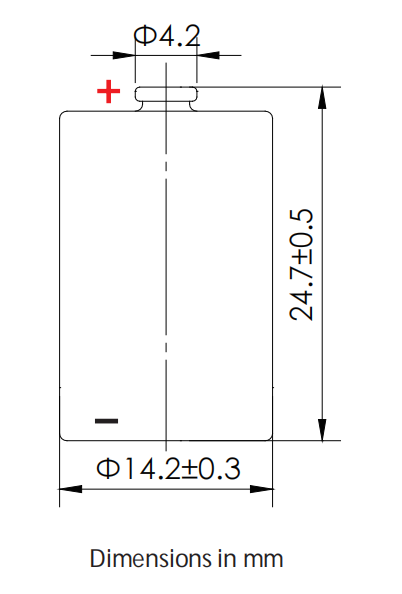

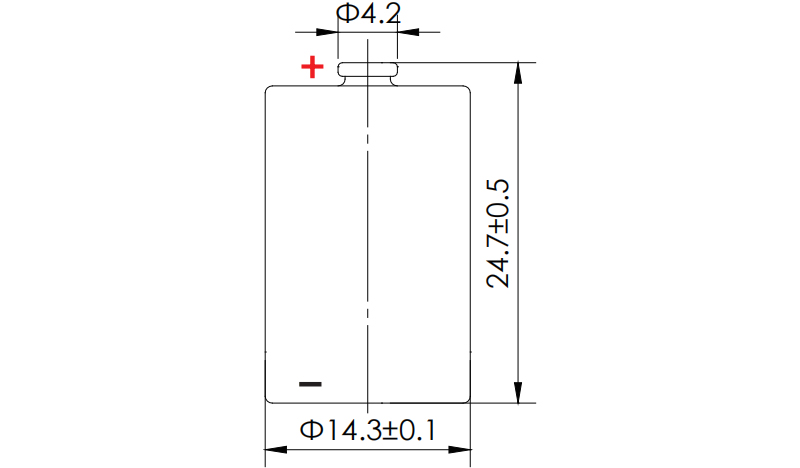

| Physical characteristics | Diameter | 14.3±0.1mm |
| Height | 24.7±0.5mm | |
| Typical weight | 10.0g | |
| Li metal content | 0.35g | |
