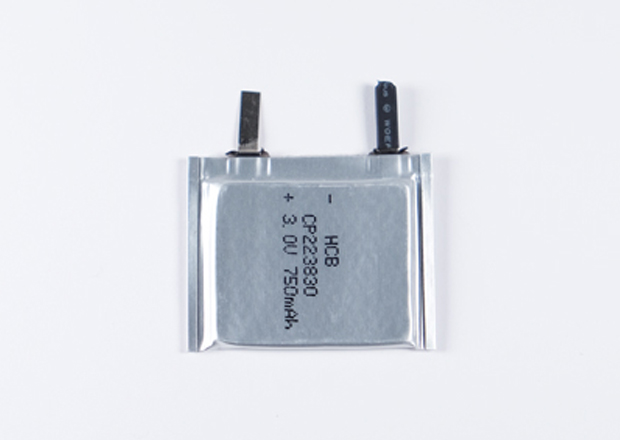

CP223830 Lithium Pouch Cell

Long Working Life Non-Rechargeable Anti Corrosion 400mAh 3.0 V CP223830 Lithium Pouch Cell RFID IOT Internet of Things Sensor Detector Locker.

Advantage of CP223830 Lithium Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density of the lithium pouch cell up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃


Specification of CP223830 Lithium Pouch Cell


Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity400mAh
(At +25°C,battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current100mA
(At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of rated capacity.)
Maximum pulse discharge current150mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth37.0±1.5mm
Height30.0±1.0mm
Thickness2.4±0.2mm
Typical weight3.5g
Li metal content0.13g

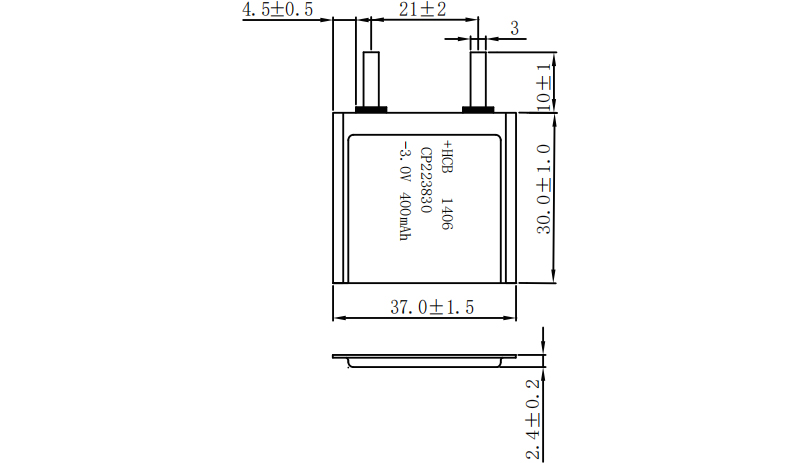

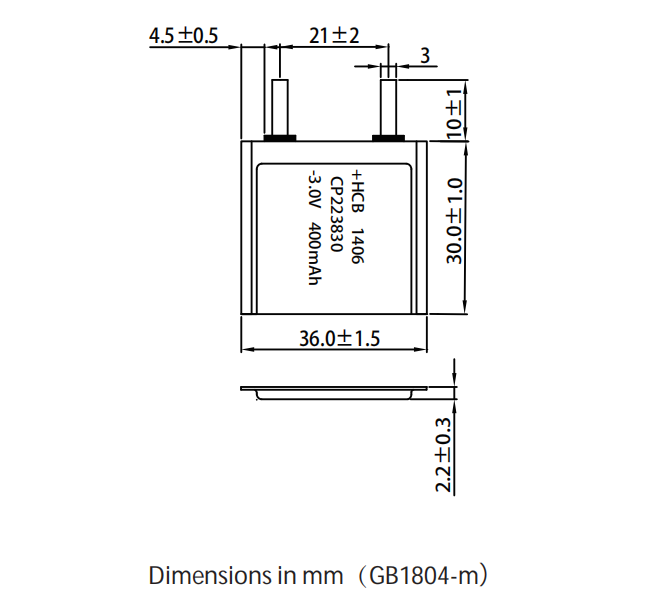

Drawing of CP223830 Lithium Pouch Cell


CP223830 Lithium Pouch Cell
