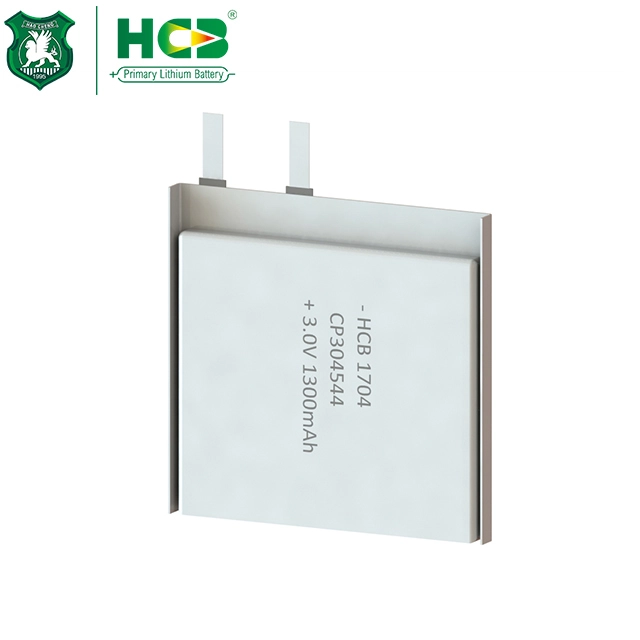

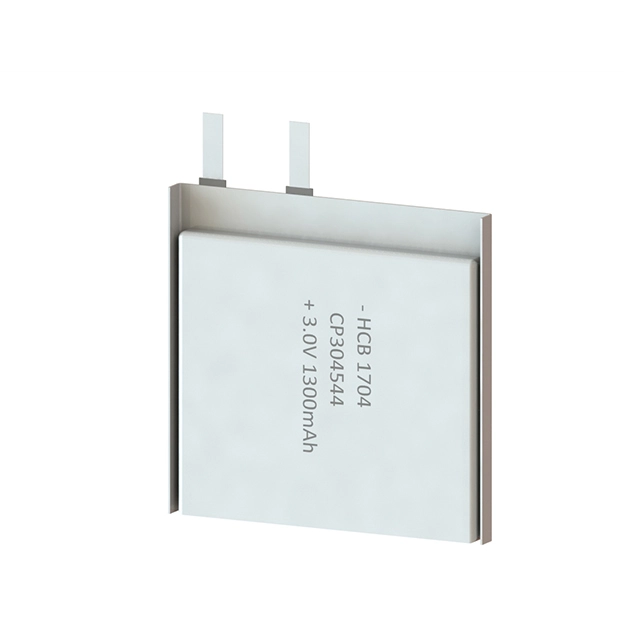

CP304544 Lithium Pouch Cell

CP304544 Primary Lithium Flat Battery Cell for electronic shelf lables. Outdoor Wireless GPS Tracking Sensor Devices Required Different Dimensions 3V Li-MnO2 Pouch Cell, Soft Battery Non-Passivation Primary Lithium Thionyl Chloride Batteries.

Details of CP304544 Li-MnO2 Pouch Cell

Product Details of CP304544 Li-MnO2 Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCP304544


Payment & Shipping Terms Details of CP304544 Li-MnO2 Pouch Cell

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply AbilityTwo million units per month


Advantage of CP304544 Li-MnO2 Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density for lithium pouch battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

Specification of CP304544 Li-MnO2 Pouch Cells

Electrical characteristicsOpen circuit voltage (at +25°C)≥3.10V
Nominal capacity1300mAh
At +25°C, the battery is discharged at a continuous current of 1mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current300mA
(At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of rated capacity.)
Maximum pulse discharge current500mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse
characteristics, the temperature, and the cell’s previous history.
Fitting the cell with a capacitor may be recommended in severe
conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidthMax 47.0mm
HeightMax 45.0mm
ThicknessMax 3.2mm
Typical weight9.2g
Li metal content0.46g

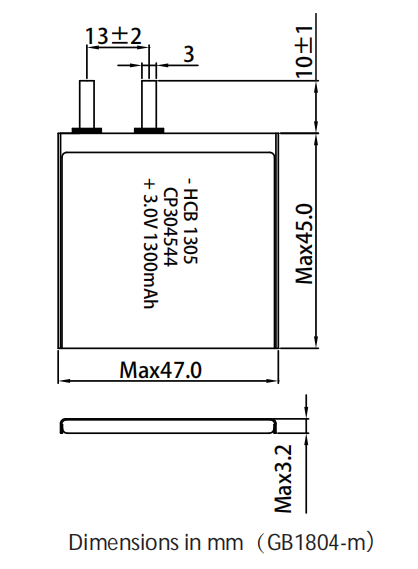

Drawing of CP304544 Li-MnO2 Pouch Cells
