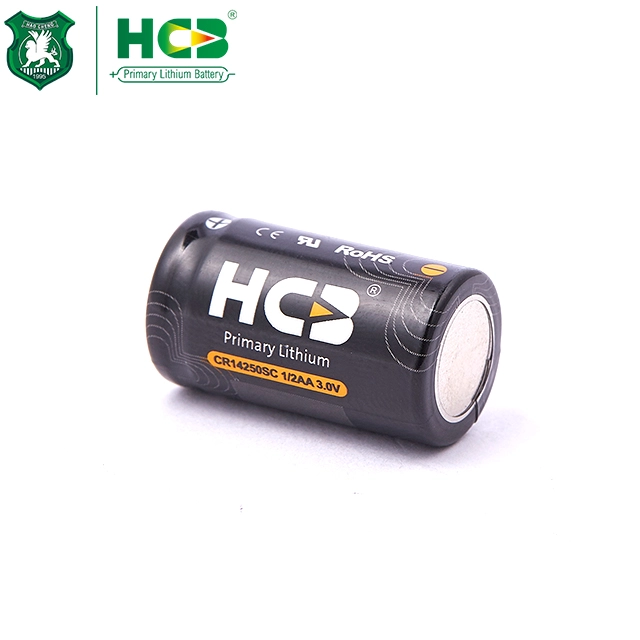

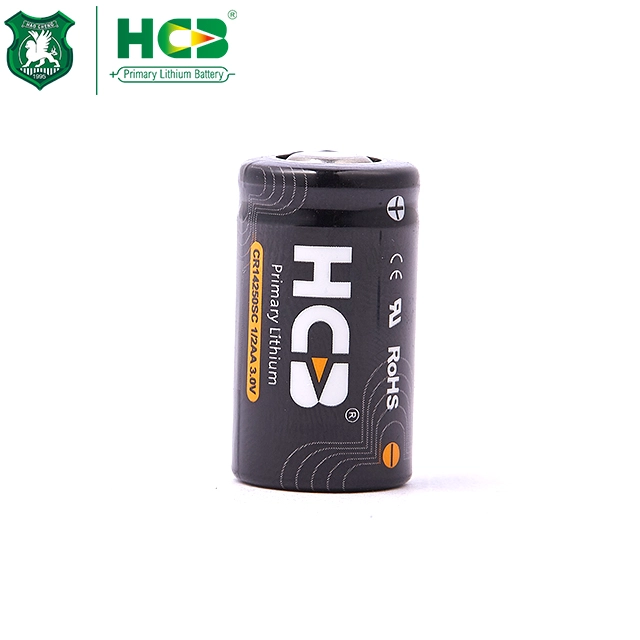

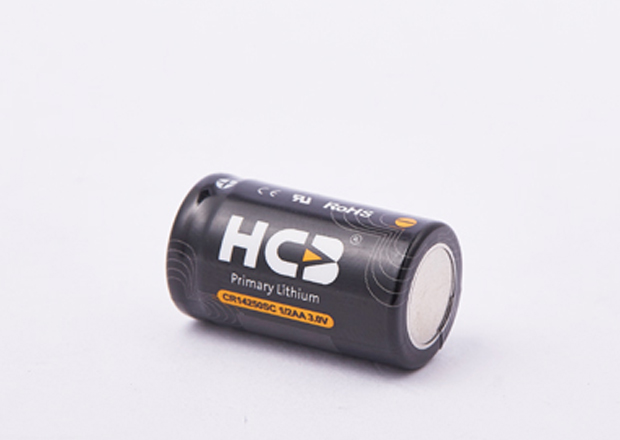

CR14250SC Li-MnO2 Cylindrical Battery

1050mAh 3.0V Li-MnO2 Batteries 1/2AA Lithium Manganese Dioxide Cell For Smoke Alarm Sensor, Asset tracking

High Capacity Lithium Primary Battery / High-Performance Lithium Battery

Advantage of CR14250SC Li-MnO2 Cylindrical Battery

  • High voltage response, stable during most of the lifetime of the application

  • Energy density up to 830Wh/L

  • Wide operating temperature range (-40℃~+85℃) for the lithium manganese dioxide battery

  • Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)

Specification of CR14250SC Li-MnO2 Cylindrical Battery

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity1050mAh
(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current15mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current100mA
(Maximum pulse discharge current is 100mA. The discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail, please inquiry HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Consult HCB when using batteries at temperatures exceeding
Physical characteristicsDiameter14.0±0.2mm
Typical weight22.0g
Li metal content0.30g

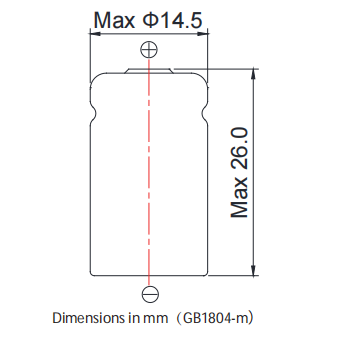

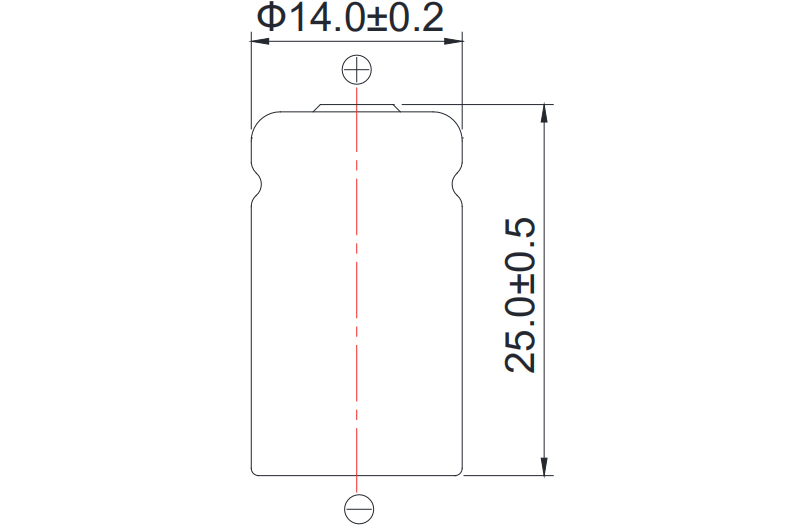

Drawing of CR14250SC Li-MnO2 Cylindrical Battery

CR14250SC Li-MnO2 Cylindrical Battery/Lithium Manganese Dioxide Battery
