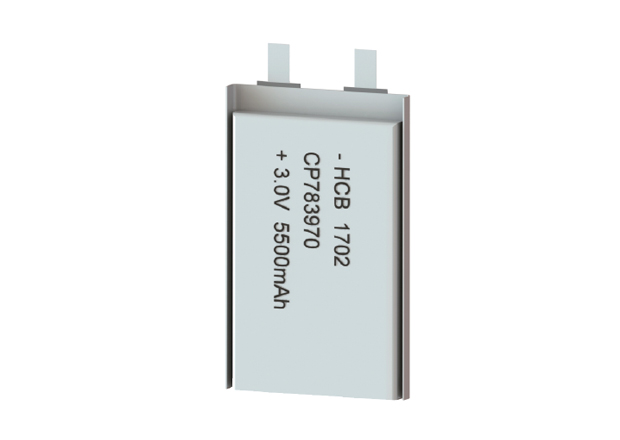

CP783970 Lithium Pouch Cell

Low Self-discharge 8mm Soft Battery Non-rechargeable CP783970 5500mAh 3V Lithium Pouch Cell For ESL Price Tag, Li-MnO2 Pouch Cell not only be used as an exclusive battery application solution for the Internet of Things industry but also can be used as an innovative power supply solution in the smart meter industry.

Details of CP783970 Lithium Pouch Cell

Product Details of CP783970 Lithium Pouch Cell

Place of OriginChina
Brand NameHCB
Model NumberCP783970

Payment & Shipping Terms Details of CP783970 Lithium Pouch Cell

Minimum Order Quantity1K pcs
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time15 workdays
Payment TermsT/T, L/C
Supply Abilitytwo million units per month

Advantage of CP783970 Lithium Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃) suitable for the lithium pouch battery

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

Specification of CP783970 Lithium Pouch Cell

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity5500mAh
(At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current2000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth38.0±1.0mm
Typical weight37.0g
Li metal content2.00g

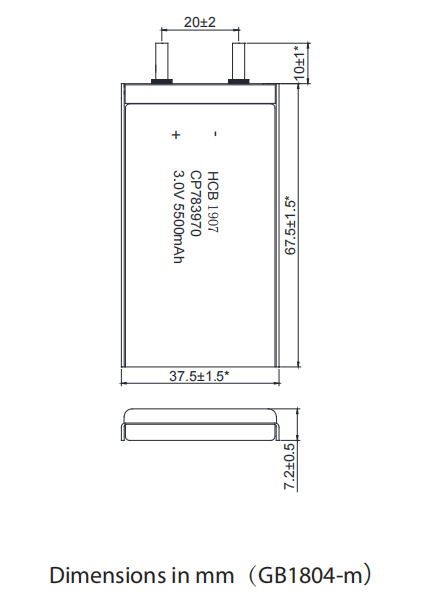

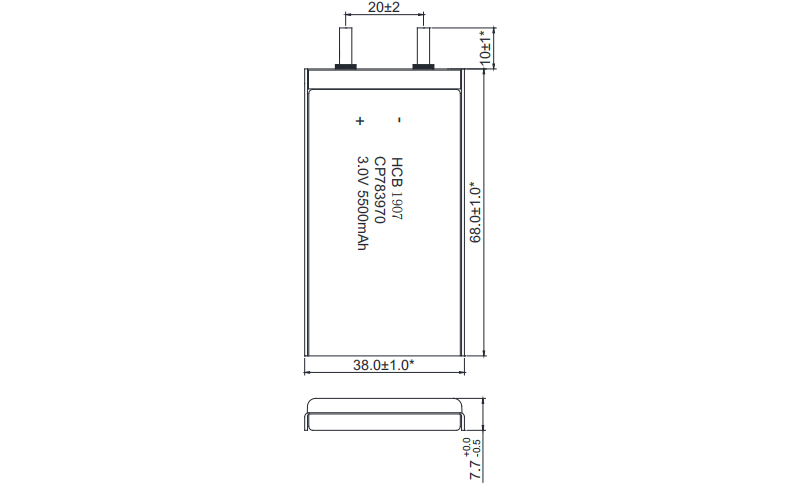

Drawing of CP783970 Lithium Pouch Cell

CP783970 Lithium Pouch Cell
