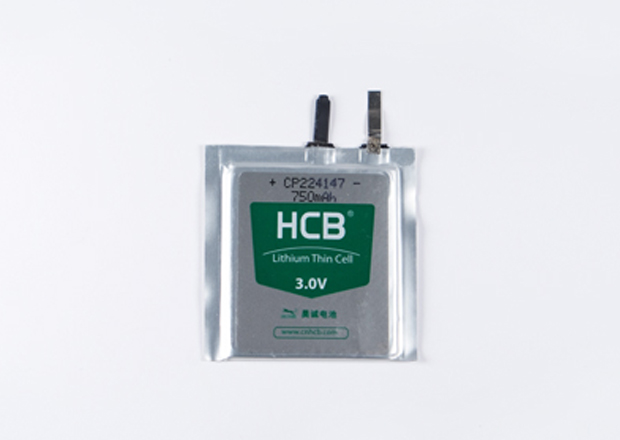

CP224147 Lithium Pouch Cell

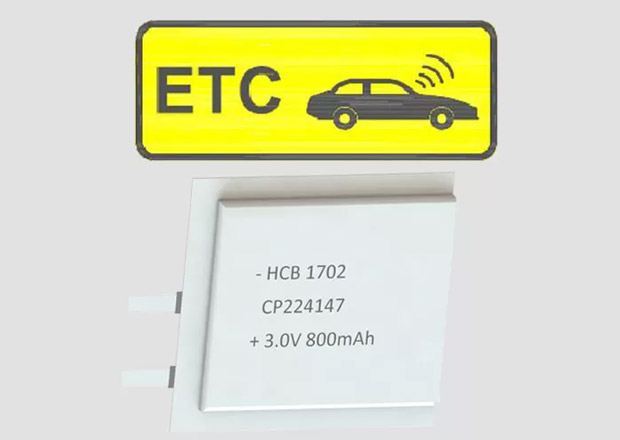

CP224147 Primary Lithium 800mAh Flat Battery Cell for electronic shelf lables. Outdoor Wireless GPS Tracking Sensor Devices Required Different Dimensions 3V Li-MnO2 Pouch Cell, Soft Battery Non-Passivation Primary Lithium Thionyl Chloride Batteries.

Details of CP224147 Lithium Pouch Cell


Product Details of CP224147 Lithium Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCP224147


Payment & Shipping Terms Details of CP224147 Lithium Pouch Cell

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply AbilityTwo million units per month


Advantage of CP224147 Lithium Pouch Cell


  • High voltage response, stable during most of the lifetime of the application

  • Energy density for lithium pouch battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

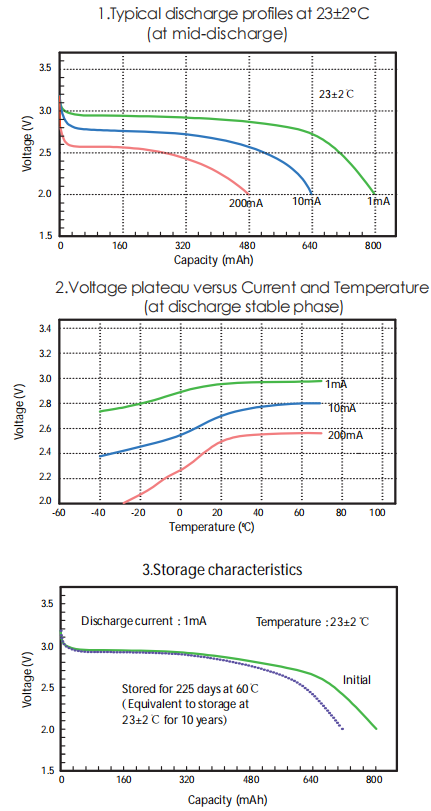

Specification of CP224147 Lithium Pouch Cell


Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity800mAh
(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current200mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current400mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth42.0±1.0mm
Height48.0±1.0mm
Thickness2.2±0.1mm
Typical weight6.5g
Li metal content0.26g

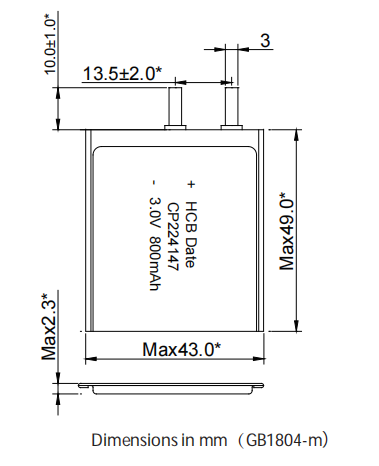

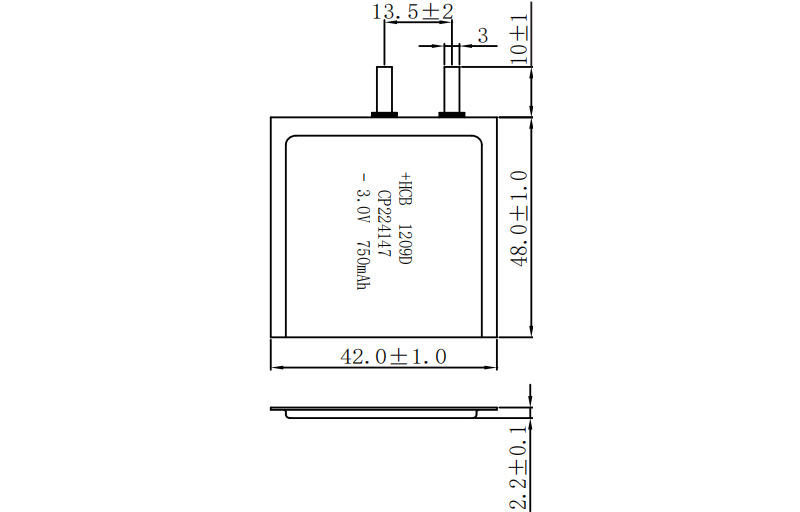

Drawing of CP224147 Lithium Pouch Cell


CP224147 Lithium Pouch Cell
