CR341245 Li-MnO2 Cylindrical Battery

Hermetic Sealing DD Size 23000mAh Li-MnO2 Battery High Energy Density CR341245 Non-Rechargeable Spiral Cylindrical Lithium Batteries for Metering/Long Life Time Intelligent Smoke Sensor Detectors.

Details of CR341245 Li-MnO2 Cylindrical Battery

Product Details of CR341245 Li-MnO2 Cylindrical Battery

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCR341245


Payment & Shipping Terms Details of CR341245 Li-MnO2 Cylindrical Battery

Minimum Order Quantity

1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, Western Union, D/P, D/A, MoneyGram
Supply AbilityTwo million units per month

Main Applications of CR341245 Li-MnO2 Cylindrical Battery

  • Marine & signaling

Life jacket, signal light, buoy, etc.

  • Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

  • Tracking

RFID products, road toll transponder, IC cards, etc.


Advantage of CR341245 Li-MnO2 Cylindrical Battery

  • High voltage response, stable during most of the lifetime of the application.

  • Energy density up to 260Wh/kg.

  • As one of the lithium manganese dioxide battery suppliers, we provide the battery with wide operating temperature range (-40℃~+85℃).

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃).



Specification of CR341245 Li-MnO2 Cylindrical Battery

Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity23000mAh

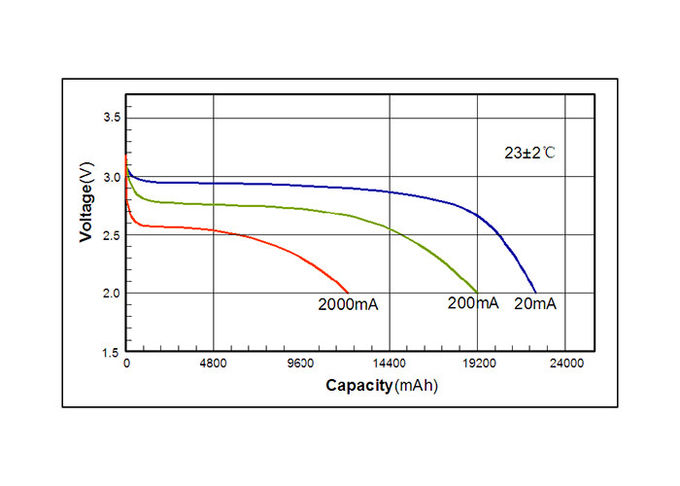

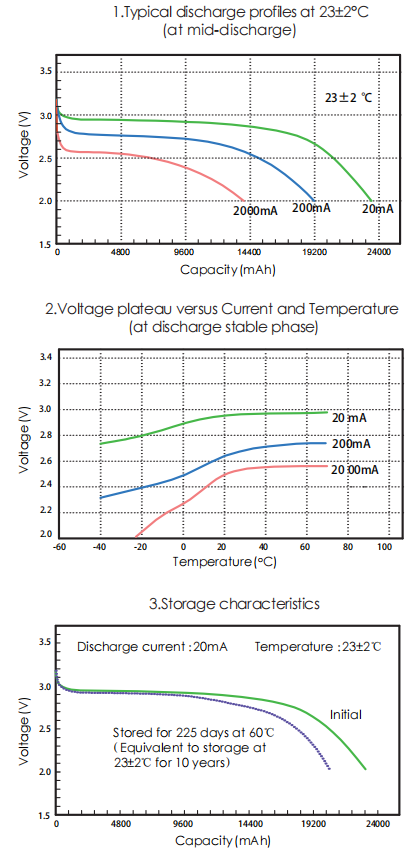

(At +25°C, the battery is discharged at continuous current 20mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current2000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth32.7±0.5mm
Height124.0±0.5mm
Typical weight270.0g
Li metal content7.38g

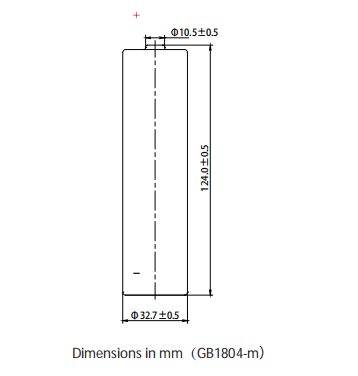

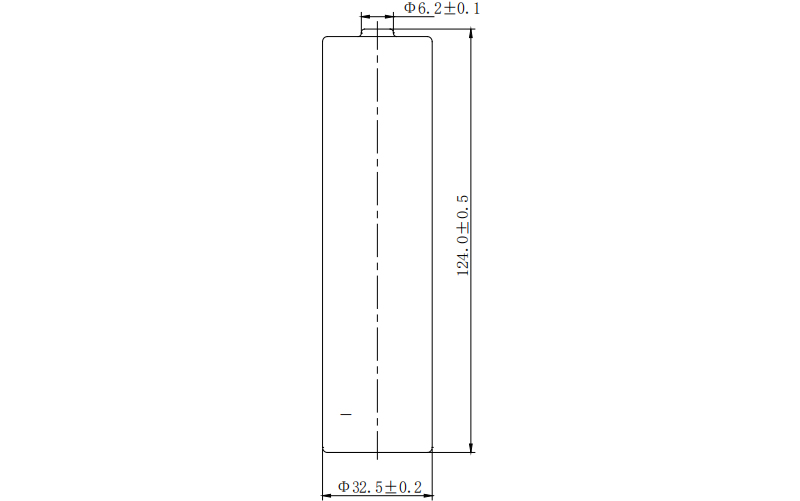

Drawing of CR341245 Li-MnO2 Cylindrical Battery
