ER14505 Li-SOCl2 Cylindrical Battery

Primary Lithium Battery ER14505

2600 mAh capacity

No Passivation Effect Wide Temperature Range

3.6V Lithium-thionyl chloride [Li-SOCl2] AA-size bobbin battery ER14250

Product Details of ER14505 Li-SOCl2 Cylindrical Battery


Place of OriginCN
Brand NameHCB
CertificationUN/CE/UL
Model NumberER14505


Specification of ER14505 Li-SOCl2 Cylindrical Battery



Nominal Capacity2600mAh
Battery discharged at continuous current 1.35mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage3.6 V
Maximum Continuous Current50mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current150mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH

Operating Temperature-55℃ to +85℃
Battery DimensionSee drawing on pag
Max Weight20.0g
Self-discharge Rate1%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life10 years
Ambient temperature 23±2℃


1. Battery Characteristic of ER14505 Li-SOCl2 Cylindrical Battery


  • High Voltage

We provide the nominal voltage up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V

  • High Energy Density

The specific energy density of each battery is 450Wh/kg

  • Wide Operating Temperature Range

Battery working temperature range from -55℃ to +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

The battery self-discharge less than 2% per year at room temperature


Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years



2. Main Applications of ER14505 Li-SOCl2 Cylindrical Battery


  • Security & alarms

Smoke detectors, security alarms, seismometers, locking systems, monitoring systems, etc.

  • Military & defense

Ground force (individual soldier system, infantry fighting vehicles, robot soldier), navy (submarine, underwater robot), air force (fighters, unmanned surveillance drones), aerospace (satellites, shuttles), etc.

  • Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.

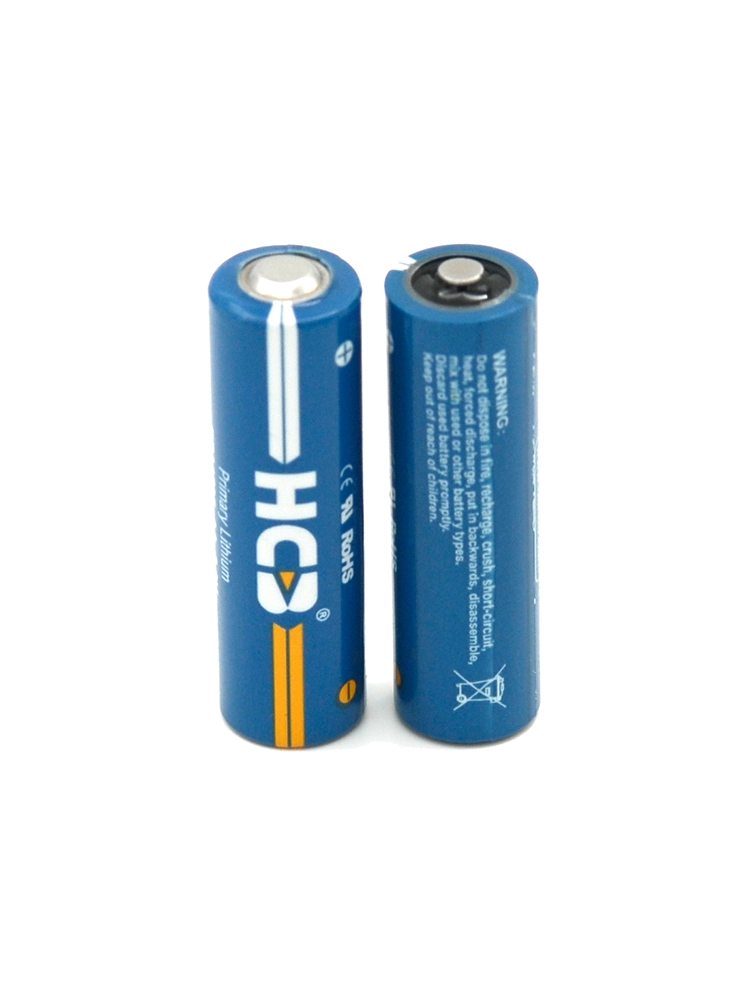

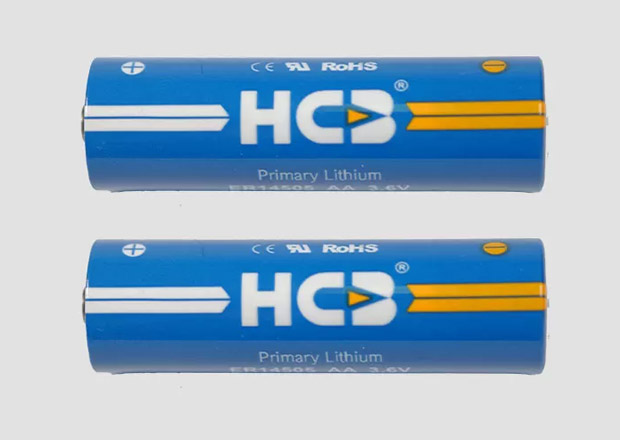

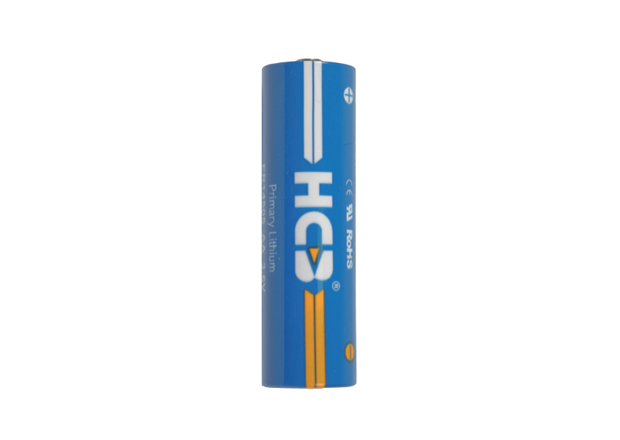

ER14505 Li-SOCl2 Cylindrical Battery

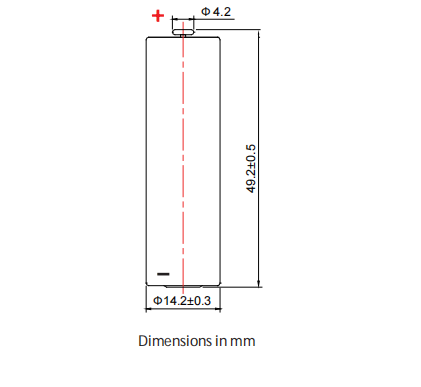

Drawing of ER14505 Li-SOCl2 Cylindrical Battery/Lithium Thionyl Chloride Cell

ER14505 Li-SOCl2 Cylindrical Battery/Lithium Thionyl Chloride Cell
