CR123ASC Li-MnO2 Cylindrical Battery

2100mAh CR123ASC Cylindrical Li-MnO2 Battery Primary Lithium Manganese Dioxide, High Capacity Lithium Primary Battery / Long Life Lithium Battery Stable Performance, World-class products

The safety performance reaches T6 level

Super long standby can let your equipment get 10+ years of service life


Details of CR123ASC Li-MnO2 Cylindrical Battery


Product Details of CR123ASC Li-MnO2 Cylindrical Battery

Place of OriginChina
Brand NameHCB
CertificationUN/CE/UL/RoHS
Model NumberCR17335SC/CR123ASC


Payment & Shipping Terms Details of CR123ASC Li-MnO2 Cylindrical Battery

Minimum Order Quantity1K pcs
Pricenegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time35 workdays
Payment TermsT/T, L/C
Supply Abilitytwo million units per month


Advantages of CR123ASC Li-MnO2 Cylindrical Battery


  • High voltage response, stable during most of the lifetime of the application

  • Energy density up to 830Wh/L

  • As one of the lithium manganese dioxide battery suppliers, we provide the battery with wide operating temperature range (-40℃~+85℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)


Specification of CR123ASC Li-MnO2 Cylindrical Battery


Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity2100mAh
(At +25°C, battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage.)
Maximum continuous current20mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current50mA
(Maximum pulse discharge current is 100mA. Discharge capacity of the battery will change with the pulse characteristics and ambient temperature as well as storage situation. For more detail,please inquiry HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)

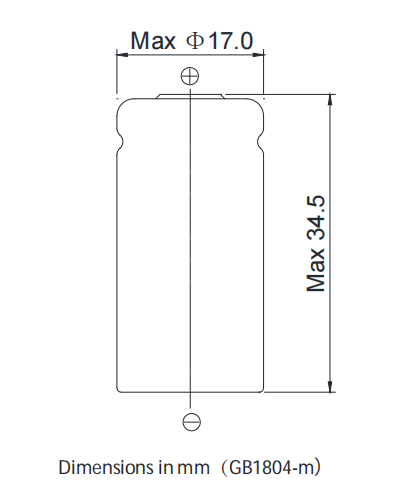

Physical characteristicsWidthMax 17.0mm
HeightMax 34.5mm
Typical weight20.0g
Li metal content0.60g

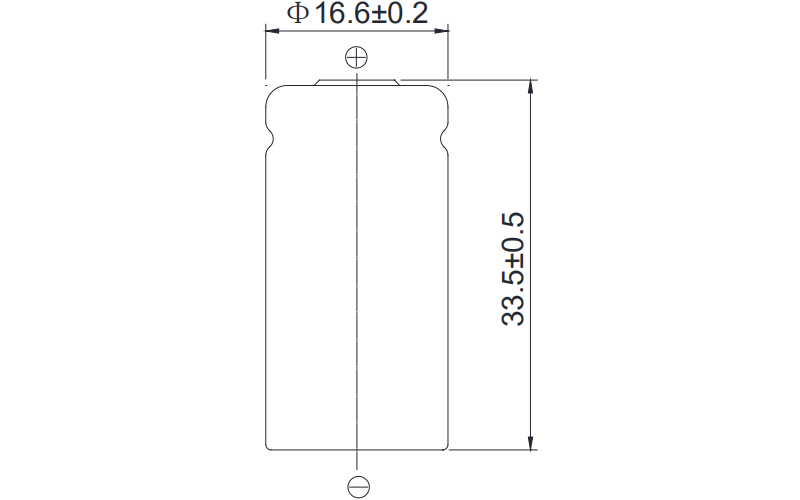

Drawing of CR123ASC Li-MnO2 Cylindrical Battery
