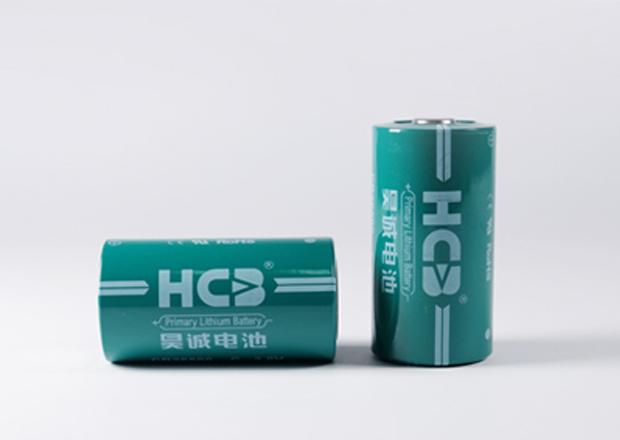

CR26500 Li-MnO2 Cylindrical Battery

Low Self Discharge Stainless Steel Cellpacking Multiple Safety Designed Li-MnO2 Battery Lithium Cylindrical CR26500 Battery 5000mAh C Model Spiral 3V for Medical Devices, metering, Smart RFID Devices, Communication Equipments, Security System, UN38.3, UL CE RoHS has passed.

Li-MnO2 Cylindrical CR26500 Battery Details

Product Details of Li-MnO2 Cylindrical CR26500 Battery

Place of OriginChina
Brand NameHCB
Model NumberCR26500/C Model/5000mAh

Payment & Shipping Terms Details of Li-MnO2 Cylindrical CR26500 Battery

Minimum Order Quantity1K pcs
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply AbilityTwo million units per month

Li-MnO2 Cylindrical CR26500 Battery Specifications

Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity5000mAh
(At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current2000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth25.5±0.2mm
Typical weight62.0g
Li metal content1.64g

CR26500 Battery Applications

  • Internet of Things

Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

  • Monitoring

The animal health monitoring system, forest fire alert, smart irrigation system, etc.

  • Medical Devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

Use Warning of Li-MnO2 Cylindrical CR26500 Battery

  • This CR26500 Battery is a non-rechargeable battery.


  • Do not use if the CR26500 battery casing is damaged.

  • Please discharge th battery for a few minutes with 100mA.

  • Don't use different models of CR26500 battery in series.

  • The CR26500 battery should be stored in a dry environment.

  • Do not continue to use the CR26500 battery if abnormal heat release or leakage occurs.

  • Please read the manual before using our CR26500 battery.

  • Keep out reach of children. If swallowed, contact a physician at once.

  • Do not reverse the Li-MnO2 primary battery, follow strictly the signs + and – shown on batteries and appliances.

  • If CR26500 batteries are put in the wrong way they are bound to become hot very quickly. This can lead to gas or toxic material leakage and/or to a violent rupture.

  • Do not incinerate of mutilate, may burst or release toxic material.

  • Do not deform batteries. CR26500 batteries are not to be crushed, drilled into or damaged in any other way. This can lead to toxic material or gas leakage and/or violent rupture.

  • Do not throw the battery into water. This can cause explosion.

  • Do not charge primary batteries. This can cause gas leakage and will lead to violent rupture and/or fire.

  • Battery compartment should provide sufficient space for battery to expand in case of abuse.

  • Battery disposal method should be in accordance with local and state regulations.

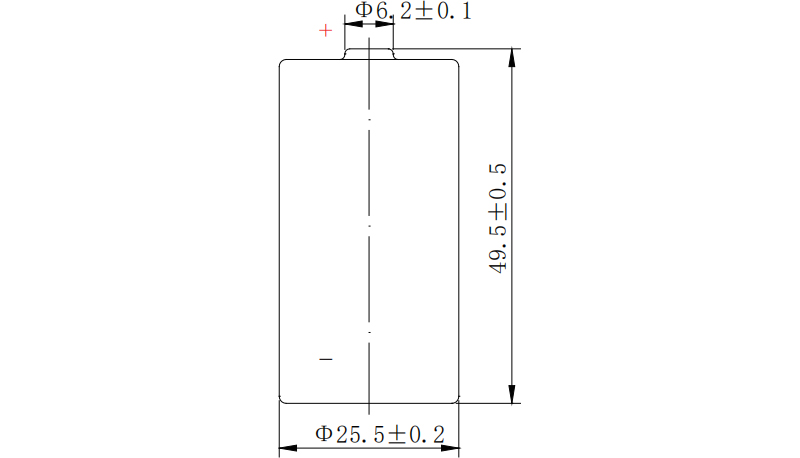

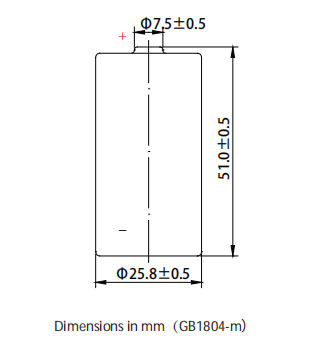

CR26500 Battery Technical Drawings

CR26500 Battery Technical Drawings
