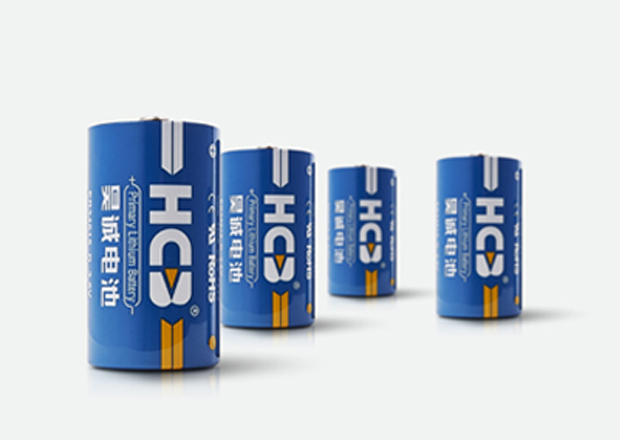

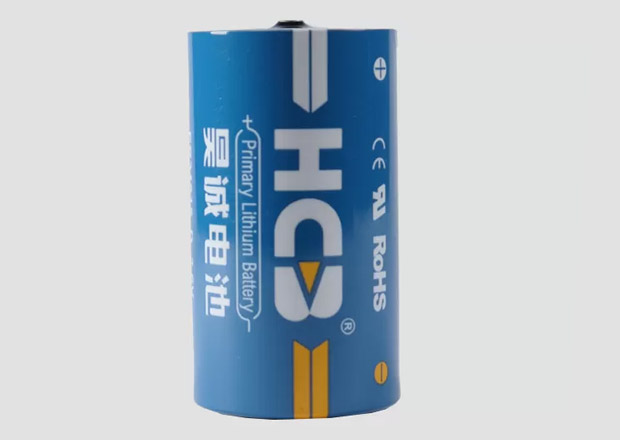

ER34615 Li-SOCl2 Cylindrical Battery

3.6 Volt primary Lithium Battery Non-Rechargeable ER34615 D Size 19000mAh Lithium-Thionyl Chloride (Li-SOCL2) battery for Utility Metering, Automatic meter reading(AMR), advanced metering infrastructure(AMI), electricity meters, gas meters, water meters, heat meters.

Details of ER34615 Li-SOCl2 Cylindrical Battery

Product Details

Place of OriginChina
Brand NameHCB
Model NumberER34615 Bobbin type D size

Payment & Shipping Terms Details

Minimum Order Quantity1K pcs
Pricecontact with HCB battery
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time≤35days
Payment TermsT/T, L/C, PayPal
Supply Abilitytwo million unit per month

Advantage of ER34615 Li-SOCl2 Cylindrical Battery

  • High and Stable Voltage

  • Energy Density up to 590Wh/kg

  • Long Shelf Life (less than 1% per year after 1  year of storage at +25℃)

  • Wide Operating Temperature (-55℃~+85℃)

Specification of ER34615 Li-SOCl2 Cylindrical Battery

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.65V
Nominal capacity19000mAh
(At +25°C, battery discharged at continuous current 2mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current250mA
(New cell*, at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity.)
Maximum pulse discharge current400mA
(400 mA/0.1 second pulses, drained every 2 minutes at +25°C from undischarged the new cell with 10 uA base current, yield voltage reading above 3.0V. The readings may vary according to the pulse characteristics, the temperature, and the’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-55°C~+85°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsDiameter32.7±0.2mm
Typical weight105.0g
Li metal content5.2g

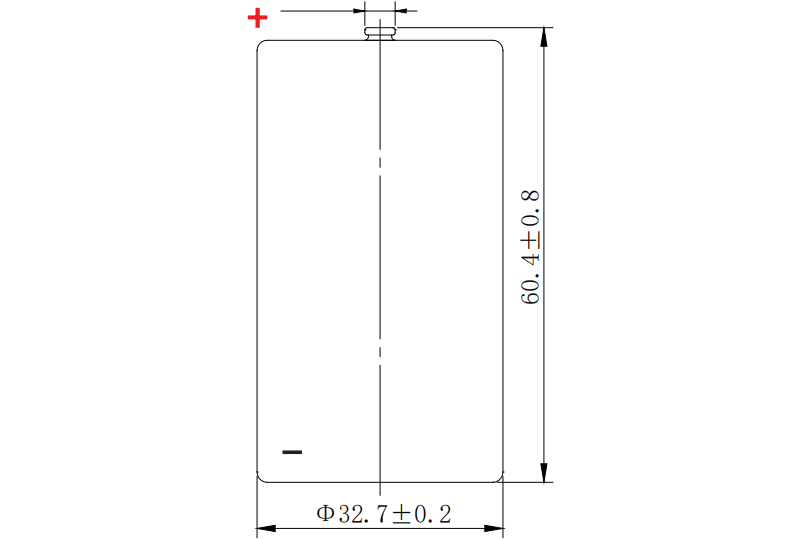

Drawing of ER34615 Li-SOCl2 Cylindrical Battery

ER34615 Li-SOCl2 Cylindrical Battery/Lithium Thionyl Chloride Cell

ER34615 Li-SOCl2 Cylindrical Battery
