High Reliability, High Weather Resistance
High Current Pulse Discharge Capability (maximun pulse discharge current can reach 5A)
High Power, High Energy
Low Self Discharge
Wide Temperature Range For Use(-20℃~+60℃)
High Reliability，High Weather Resistance
High Current Pulse Discharge Capability (maximun pulse discharge current can reach 5A)
High Power，High Energy
Low Self Discharge
Wide Temperature Range For Use(-20℃~+60℃)
Portable Medical Equipment
TCU/T-Box Remote Information Control Unit
Smart Metering
Intelligent Metering
RF System
Intelligence Sensor
Security System
Communication Equipment
| Electrical characteristics | Nominal Capacity | 600mAh |
| Nominal Voltage | 3.7V | |
| Discharge Cut-off Voltage | 2.5V | |
| Charge Cut-off Voltage | 4.2V | |
| Cycle life（0.2C 100%DOD） | ≥500 | |
| Standard Discharge Current | 120mA | |
| Maximum Discharge Current | 1200mA | |
| Maximum Charge Current | 600mA | |
| Internal Resistance(1kHz@RT) | ≤95mΩ | |
| Storage Environment（Recommended） | 25±3°C 65±20% RH | |
| Charge Temperature | 0℃~45℃ | |
| Discharge Temperature | -20℃~+60℃ | |

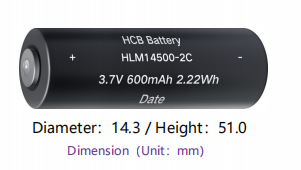

| Physical characteristics | Diameter(max) | 14.3mm |
| Height(max) | 51.0mm |
