CR34615 Li-MnO2 Battery 3V

High Capacity D Size 12000mAh Cylindrical Primary Lithium CR34615 3V battery Lithium Manganese Dioxide Batteries, Li-MnO2 Battery Long Shelf Life. For RFID Medical Devices Non-rechargeable NB IOT LORA GSM

CR34615 Li-MnO2 Battery 3V Details

Product Details of Li-MnO2 Cylindrical CR34615 3V Battery

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCR34615


Payment & Shipping Terms Details of Li-MnO2 Cylindrical CR34615 3V Battery

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time35 workdays
Payment TermsT/T, L/C
Supply AbilityTwo million units per month


Li-MnO2 Battery CR34615 Battery 3V Applications

  • Infrastructures

Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.

  • Telecommunications

Wireless telecommunication devices

  • Oil & gas

Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.


Li-MnO2 Battery CR34615 Battery 3V Advantages

  • High voltage response, stable during most of the lifetime of the application.

  • Energy density of CR34615 battery up to 260Wh/kg.

  • Wide operating temperature range (-40℃~+85℃) for CR34615 battery3V.

  • As one of the lithium manganese dioxide battery suppliers, we provide the battery with a low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃).

  • Rated capacity. (Cut-off at 10.0 mA,+23ºC,2.0V. The restored capacity of CR34615 battery varies with the leakage current, the temperature, and the cut-off voltage.)

  • Recommended maximum continuous current for CR34615 battery (Higher electric current).


Li-MnO2 Battery CR34615 Battery 3V Specifications

Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity12000mAh
(At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current2000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth32.7±0.5mm
Height61.2±0.8mm
Typical weight125.0g
Li metal content4.00g

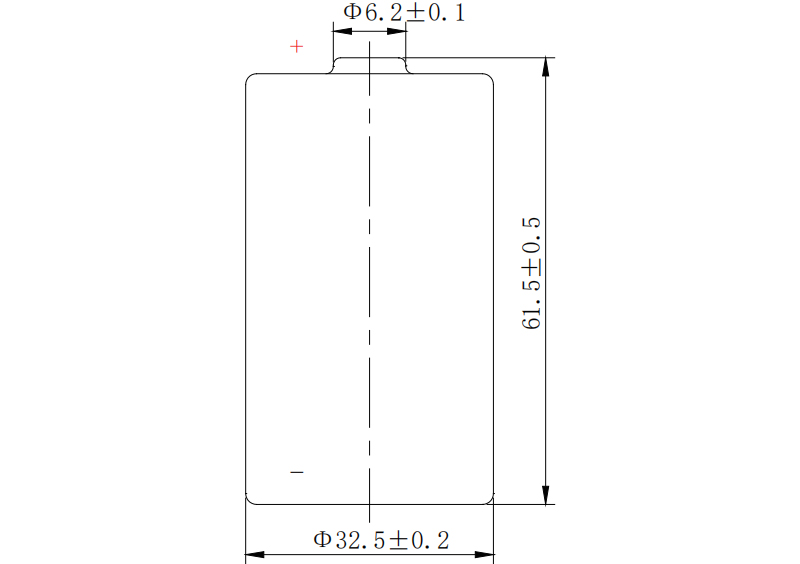

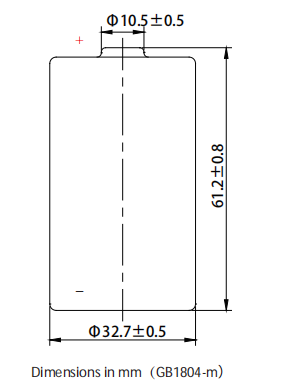

Li-MnO2 Battery CR34615 Battery 3V Technical Drawings
