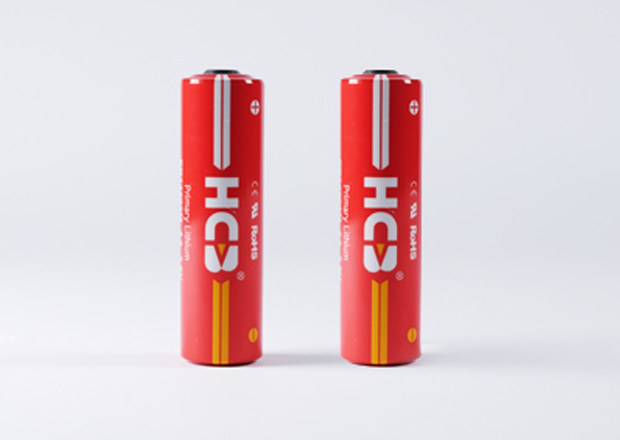

ER14505M Li-SOCl2 Cylindrical Battery

Long Shelf Life High-Reliability Safe Design High Pulse Spiral Type Non-Rechargeable 2100mAh Er14505m 3.6 V Lithium Battery AA model for Water Meter, Smaller Global Tracker, GPS, metering, medicial device, Smart Metering, RFID Devices, Communication Equipments, Security System.

Advantage of ER14505M Li-SOCl2 Cylindrical Battery

  • High and Stable Voltage

  • Energy Density up to 907Wh/L

  • Long Shelf Life (less than 1% per year after 1  year of storage at +25℃)

  • Wide Operating Temperature (-55℃~+85℃)

Specification of ER14505M Li-SOCl2 Cylindrical Battery

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.65V
Nominal capacity2100mAh
(At +25°C, battery discharged at continuous current 4mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. )
Maximum continuous current400mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )
Maximum pulse discharge current800mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-55°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsDiameter15.1±0.2mm
Typical weight22.0g
Li metal content0.60g

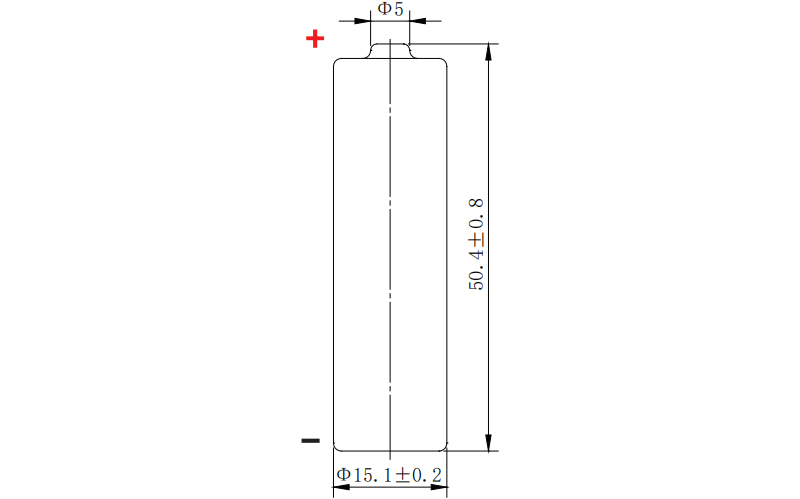

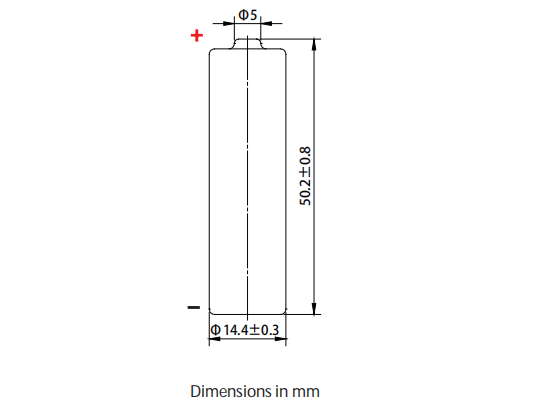

Drawing of ER14505M Li-SOCl2 Cylindrical Battery

ER14505M Li-SOCl2 Cylindrical Battery/Lithium Thionyl Chloride Cell
