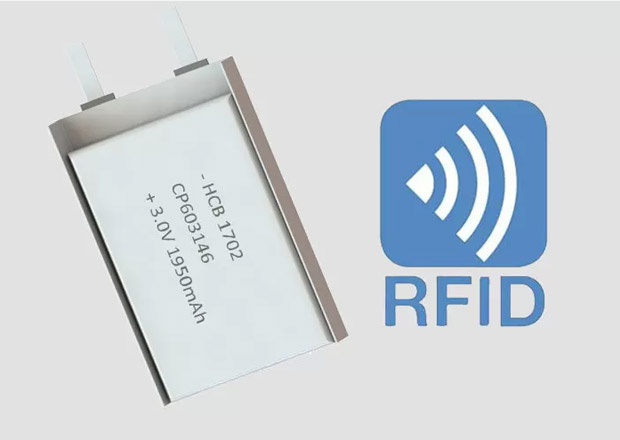

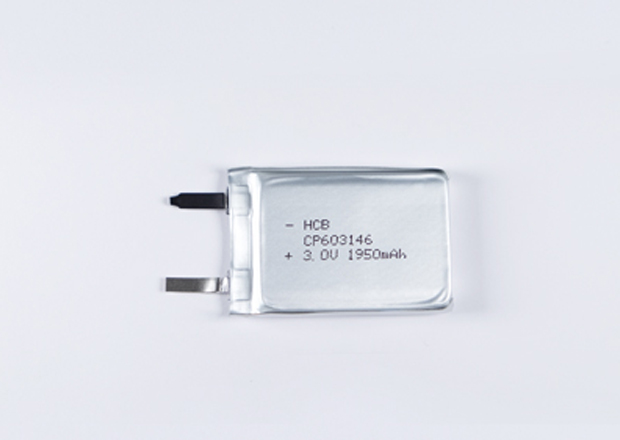

6.2mm Thin Soft Battery Non-Rechargeable 3V 1950mAh CP603146 Lithium Pouch Cell For IoT, GPS, RFID, Alarm Sensors, Water Meter Gas Meter NB-IoT Meter.
Product Details of CP603146 Lithium Pouch Cell
| Place of Origin | China |
| Brand Name | HCB |
| Certification | UN/CE/UL/RoHS |
| Model Number | CP603146 |
Payment & Shipping Terms Details of CP603146 Lithium Pouch Cell
| Minimum Order Quantity | 1K pcs |
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 5 workdays |
| Payment Terms | T/T, L/C, D/P, D/A, Western Union, MoneyGram |
| Supply Ability | Two million units per month |

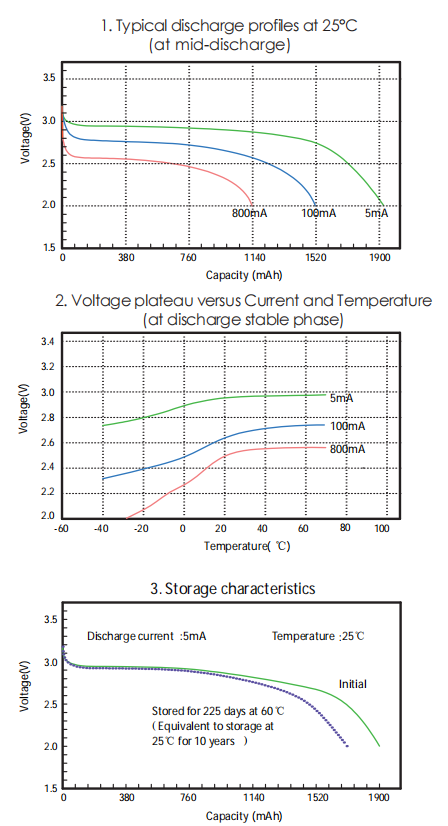

High voltage response, stable during most of the lifetime of the application
Energy density for lithium pouch battery up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
| Electrical characteristics | Open circuit voltage (at 25°C) | ≥3.10V |
| Nominal capacity | 1950mAh | |
| (At +25°C, battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
| Maximum continuous current | 800mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.) | ||
| Maximum pulse discharge current | 1000mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.） | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||

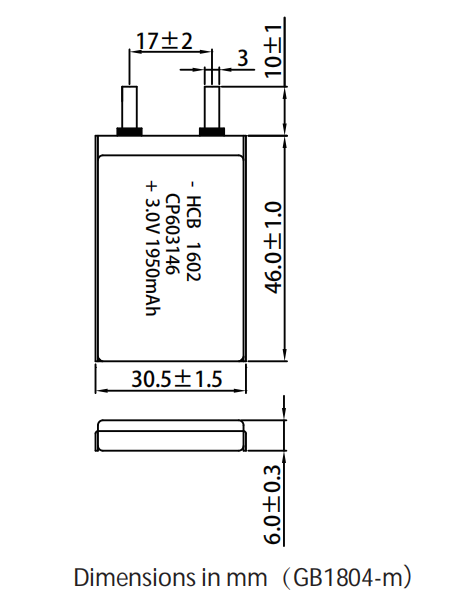

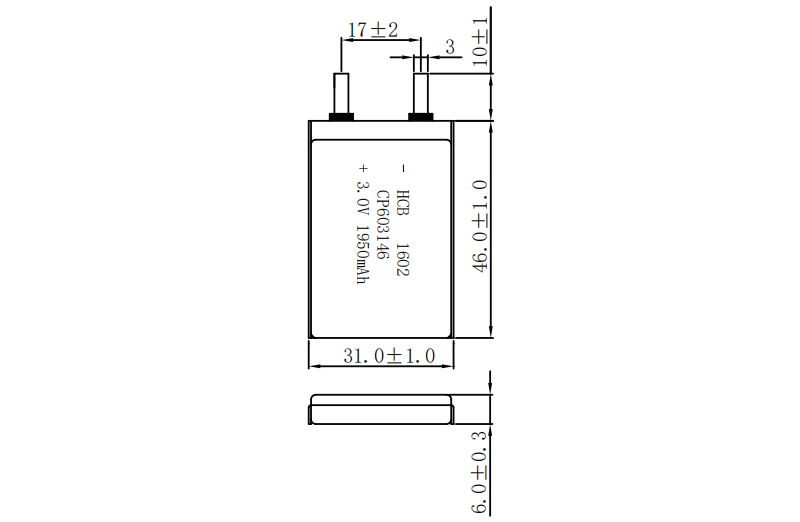

| Physical characteristics | Width | 31.0±1.0mm |
| Height | 46.0±1.0mm | |
| Thickness | 6.0±0.3mm | |
| Typical weight | 16.0g | |
| Li metal content | 0.72g | |
