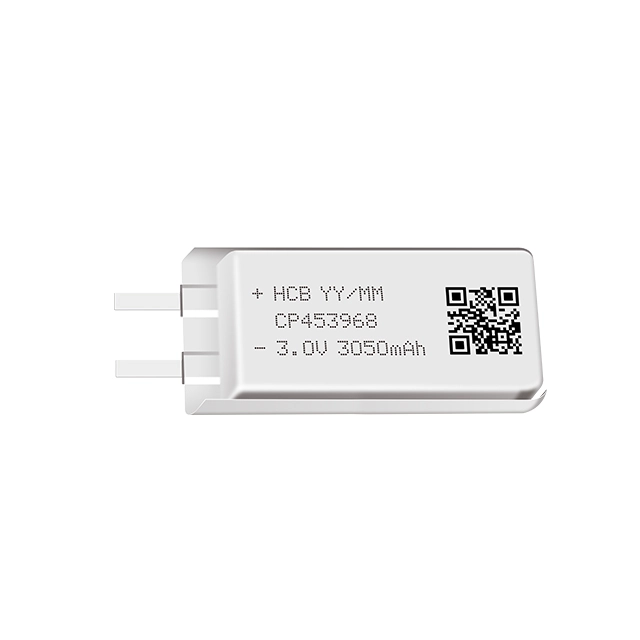

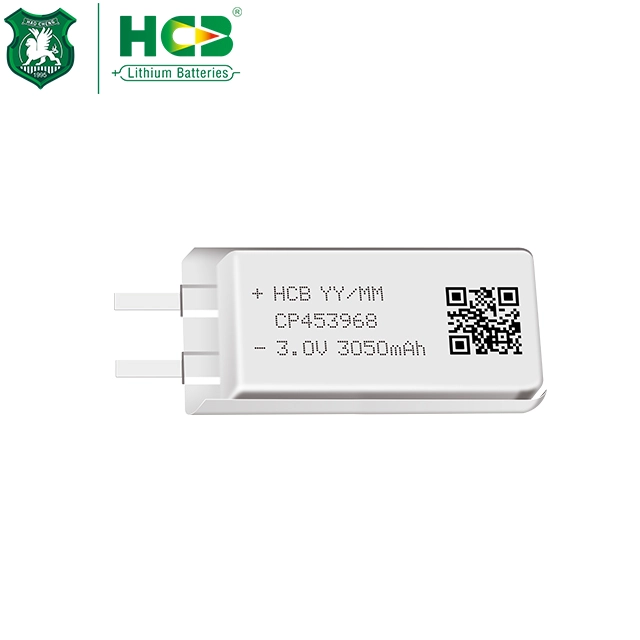

CP453968 Lithium Pouch Cell

Low Self Discharge 3050mAh 4mm Thin Flat Lithium 3.0V CP453968 Li-MnO2 Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.

Details of CP453968 Li-MnO2 Pouch Cell

Product Details of CP453968 Li-MnO2 Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCP453968


Payment & Shipping Terms Details of CP453968 Li-MnO2 Pouch Cell


Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply AbilityTwo million units per month


Key Features of CP453968 Li-MnO2 Pouch Cell

  • Optimized Battery Structure, Full Discharge Capacity

  • Long Endurance of the lithium pouch cell

  • No Passivation

  • GB 8897.4-2008、IEC 60086.4:2014 and RoHS


Main Applications of CP453968 Li-MnO2 Pouch Cell

  • Security System

  • Smart Metering

  • RFID and Tracking System

  • Wireless Transmitting

  • Smart Home Devices

  • Military Devices

Advantage of CP453968 Li-MnO2 Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density for lithium pouch battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

Specification of CP453968 Li-MnO2 Pouch Cell

Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity3050mAh
(At +25°C, the battery is discharged at continuous current 5mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current1500mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidthMax39.0mm
HeightMax68.0mm
ThicknessMax 4.5mm
Typical weight21g
Li metal content1.1g

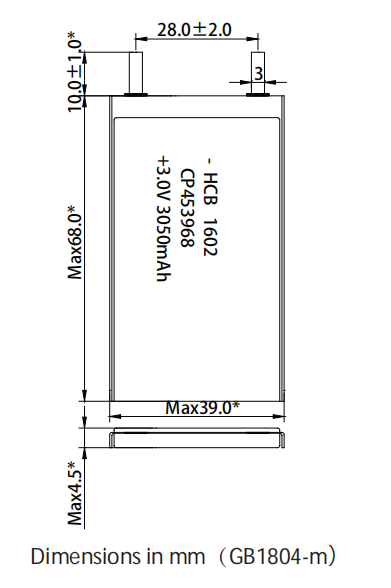

Drawing of CP453968 Li-MnO2 Pouch Cell
