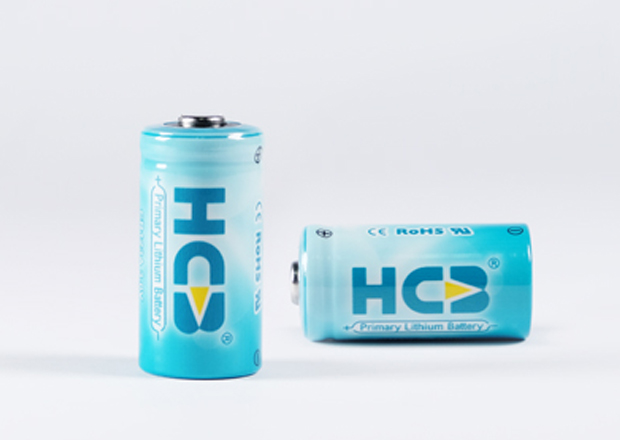

CR123A Li-MnO2 Cylindrical Battery

Excellent Performance Non-rechargeable NB IOT LORA GSM 3 Volt 1500mAh Spiral CR123A Lithium Batteries for Water Meter, Smoke Detectors, Camera Video Camera Timer, NB-IoT Meter and Sensor, smoke detector, smoke alarm

Details of CR123A Li-MnO2 Cylindrical Battery


Product Details of CR123A Li-MnO2 Cylindrical Battery

Place of OriginHubei Wuhan
Brand NameHCB
CertificationUN/CE/UL
Model NumberCR123A


Payment & Shipping Terms Details of CR123A Li-MnO2 Cylindrical Battery

Minimum Order Quantity1K pcs
Pricenegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time35 workdays
Payment TermsT/T, L/C
Supply Abilitytwo million units per month


Advantage of CR123A Li-MnO2 Cylindrical Battery


  • High voltage response, stable during most of the lifetime of the application.

  • Energy density for Li-MnO2 primary battery up to 830wh/L.

  • Wide operating temperature range (-40℃~+85℃).

  • Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃).


Specification of CR123A Li-MnO2 Cylindrical Battery


Electrical characteristicsOpen circuit voltage (at 23±2°C)≥3.10V
Nominal capacity1500mAh
(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current1500mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current3000mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+85°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidth16.6±0.2mm
Height34.5 +0.0/-1.0mm
Typical weight20.0g
Li metal content0.54g

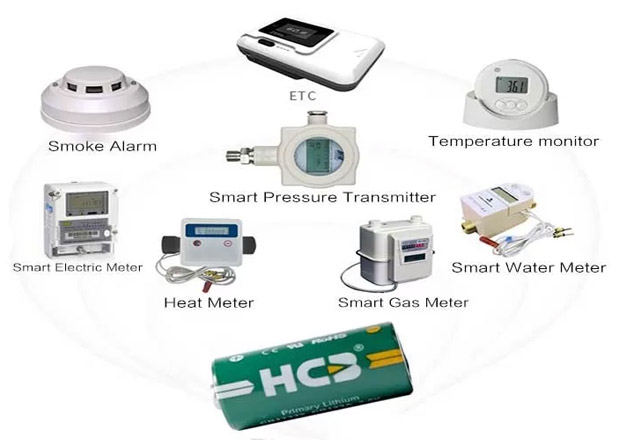

Main Applications of CR123A Li-MnO2 Cylindrical Battery


  • Telecommunications

Wireless telecommunication devices.

  • Electrical equipment

Wireless electric power tools, computer RAM & COMS, UPS, CNC machine tools, (TPMS), camera, video camera, timer, calculator, electric toys, lighting equipment, etc.

  • Medical devices

Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.

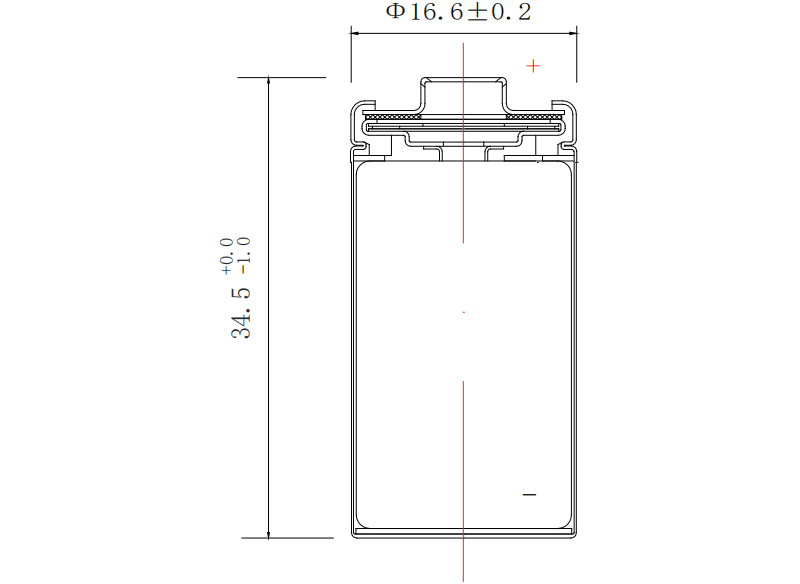

Drawing of CR123A Li-MnO2 Cylindrical Battery


CR123A Li-MnO2 Cylindrical Battery/Lithium Manganese Dioxide Battery
