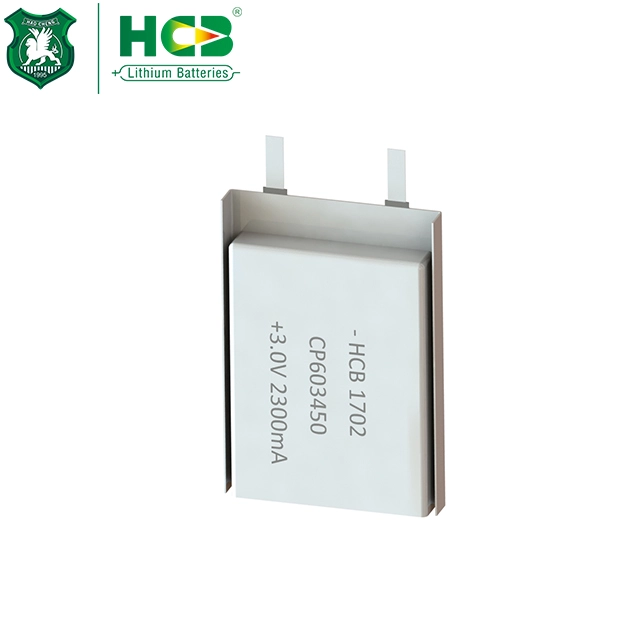

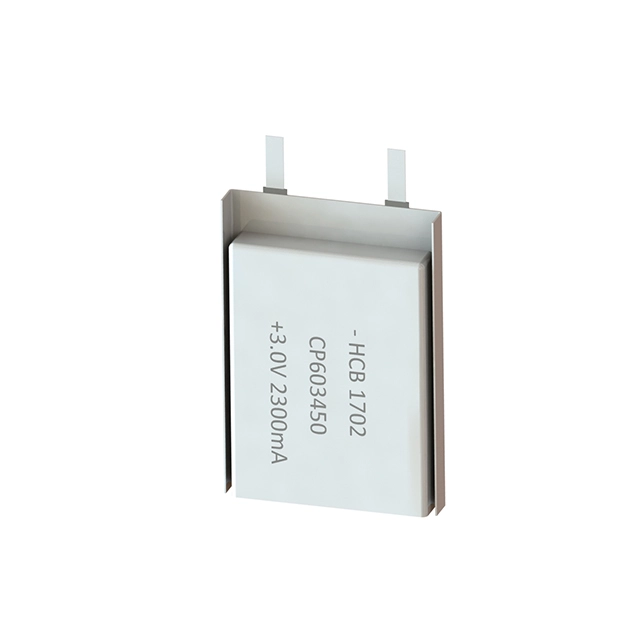

CP603450 Lithium Pouch Cell

Low Self Discharge 2300mAh 6mm Thin Flat Lithium 3.0V CP603450 Li-MnO2 Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.

Details of CP603450 Li-MnO2 Pouch Cell

Product Details of CP603450 Li-MnO2 Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationUN/CE/UL/RoHS
Model NumberCP603450


Payment & Shipping Terms Details of CP603450 Li-MnO2 Pouch Cell

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply AbilityTwo million units per month

Advantage of CP603450 Li-MnO2 Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density for lithium pouch battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

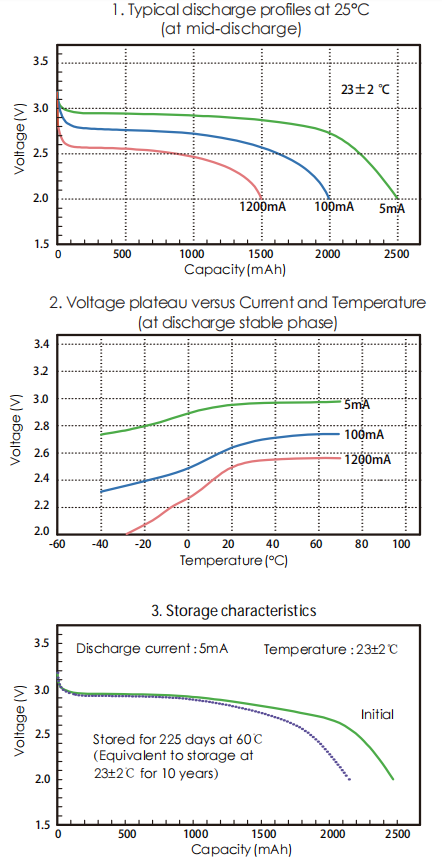

Specification of CP603450 Li-MnO2 Pouch Cell

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity2500mAh
(At +25°C, battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current1200mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current1500mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidthMax35.0mm
HeightMax51.0mm
ThicknessMax6.2mm
Typical weight15.7g
Li metal content0.66g

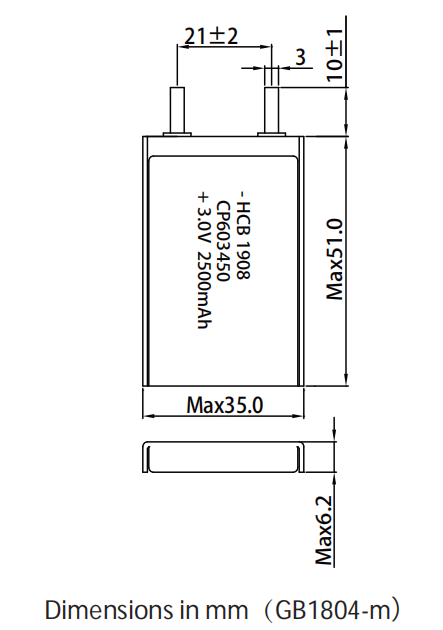

Drawing of CP603450 Li-MnO2 Pouch Cell
